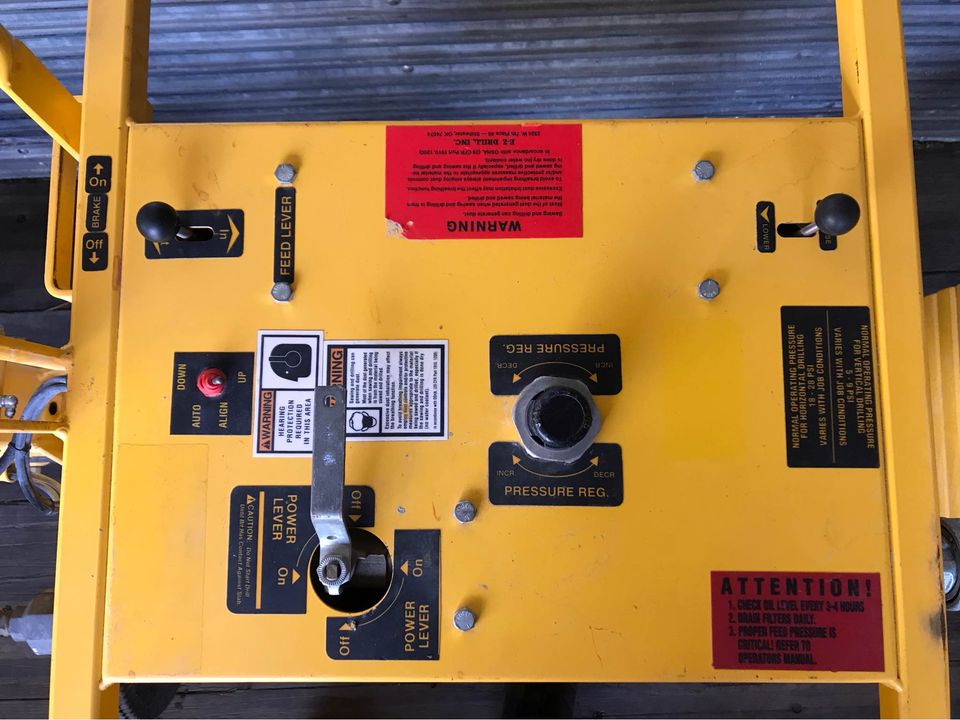

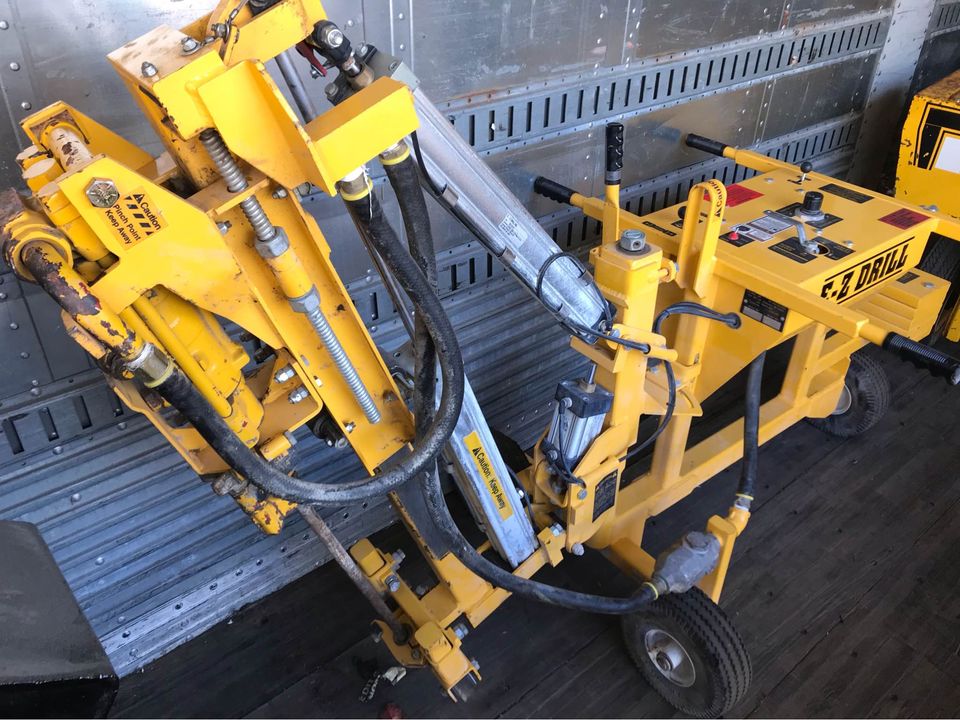

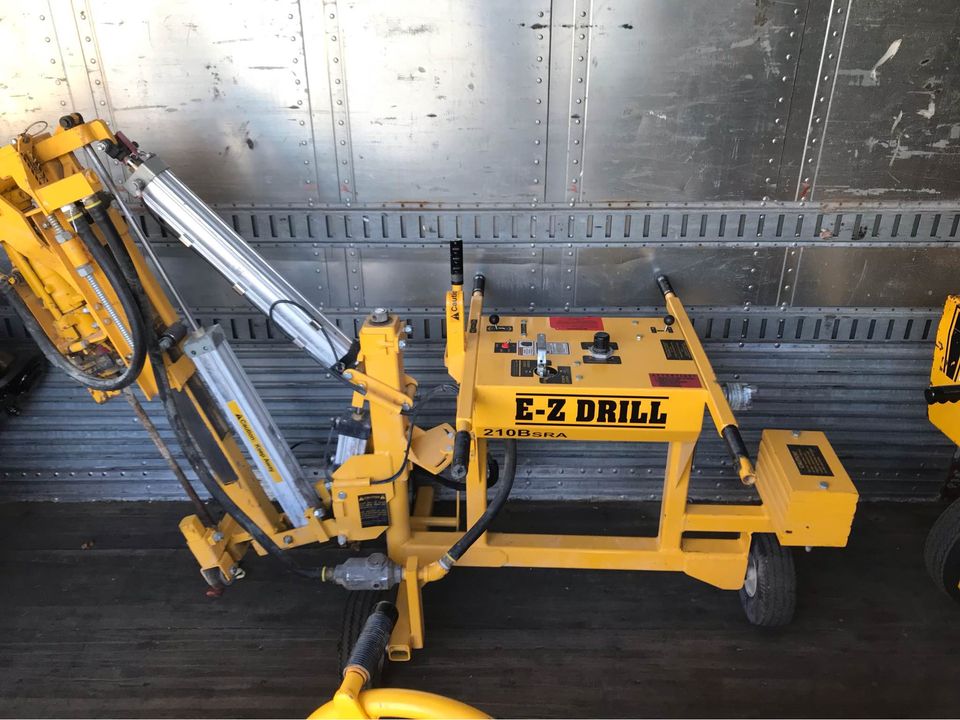

Description

Horizontal Position

 Lower Length (A)46 in (116.8 cm)

Overall Length (A) + (C)94 in (238.8 cm)
Cart Length (C)48 in (121.9 cm)
Wheel Base (D)42 in (106.7 cm)
Width32 in (81.3 cm)
Height (E)32 in (81.3 cm)
Weight385 lbs (174.8 kg)
Drill Distance From Corner6 in (15.2 cm)
Drill Distance From Ground3 in (7.6 cm)
Drill Depth (std.)18 in (45.7 cm)
Drill Bit Diameter5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
Drill Distance From Wheel to Center of Bit (F)N/A
Drill Motor (pneumatic)CP 32A
Drill Motor Weight54 lbs (24.5 kg)
Chuck Size (std.)7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum)100 cfm (2.8 m 3 /min)
Operating Pressure90 psi (6.2 bar).

Vertical Position

Lower Length (A)N/A
Lower Length (A) + (C)73 in (185.4 cm)
Cart Length (C)54 in (137.2 cm)
Wheel Base (D)48 in (121.9 cm)
Width54 in (137.2 cm)
Height (E)Varies
Weight1,150 lbs (522.1 kg)
Drill Distance From CornerN/A
Drill Distance From GroundUp to 12 in (30.5 cm)
Drill Depth (std.)18 in (45.7 cm)
Drill Bit Diameter5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
Distance From Wheel to Center of Bit (F)21 1/2 in (54.6 cm)
Drill Motor (pneumatic)CP 32A
Drill Motor Weight54 lbs (24.5 kg)
Chuck Size (std.)7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum)100 cfm (2.8 m 3/min)
Operating Pressure90 psi (6.2 bar)
Impact (ft. lbs./blow)36 fpb (49 J).
